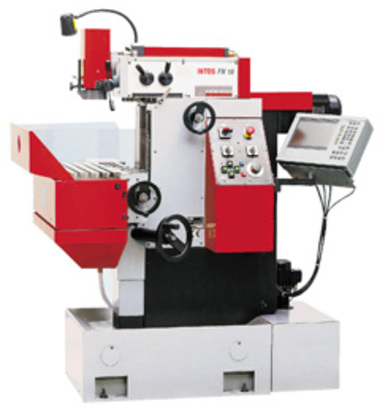

FN 16 freesmachine
Merk : Intos
Type : FN 16
X / Y / Z - 300 / 200 / 350 mm
Productomschrijving
MACHINE APPLICATION:
The FN 16 is ideal for usage at tool rooms, prototype work-shops, in moulding and production of various device and small batch production. Also at the schools and training centers this type is being manifold appreciated. As the smallest machine from INTOS product range the FN 16 meets the highest demands on accuracy and flexibility even in relation to absolutely unbeatable price and output.
- Machine base is cast iron construction resistant to vibrations
- Rotary vertical milling head
- Vertical milling with palloid toothing for smooth running of the machine
- Large and well legible safety hand wheels
- Adjustable and precise ball bearings for vertical and horizontal spindle with long durability
- Automatic stepless feed in X, Y
- Rotary panel with mounted position readout (option)
- This machine meets the European safety regulations CE
STANDARD EQUIPMENT:
- Cooling facility
- Solid angle table
- Vertical milling head with swiwelling device
- Chip tray
- Guards of angle table working space
- Tool accuracy DIN 8615
- Set of service tools
- Service instructions with the list of spare parts
- Warranty period 24 month
MACHINE SPECIFICATIONS:
| WORKING RANGE | ||
|---|---|---|
| Travels | ||
| longitudinal – axis X | mm | 300 |
| cross – axis Y | mm | 200 |
| vertical – axis Z | mm | 350 |
| VERTICAL TABLE | ||
| Clamping surface | mm | 600 x 180 |
| Width of T-grooves | mm | 12 x 21 |
| Distance / number of T-grooves | mm / pcs | 90 / 2 |
| Maximum workpiece weight | kg | 50 |
| SOLID ANGLE TABLE | ||
| Clamping surface | mm | 600 x 200 |
| Width of T-grooves | mm | 12 x 21 |
| Distance / number of T-grooves | mm / pcs | 45 / 4 |
| Maximum workpiece weight | kg | 50 |
| VERTICAL MILLING SPINDLE | ||
| Spindle taper | DIN 2080 ISO 30 | |
| Number of speed steps | 8 | |
| Speed range | U/min | 80 - 2200 |
| VERTICAL MILLING HEAD | ||
| Clamping surface | DIN 2080 ISO 30 | |
| Quill lift | mm | 45 |
| Number of speed steps | 8 | |
| Speed range | U/min | 80 - 2200 |
| FEED DRIVES | ||
| Working feeds X,Y/Z | mm/min | 0-550 / manual |
| Rapid traverse X,Y/Z | mm/min | 1200 / manual |
| MACHINE | ||
| Total input required | kVA | 4 |
| Length | mm | 1410 |
| Width | mm | 1150 |
| Height | mm | 1550 |
| Weight | kg | 500 |
| Digital read out | option |
|
