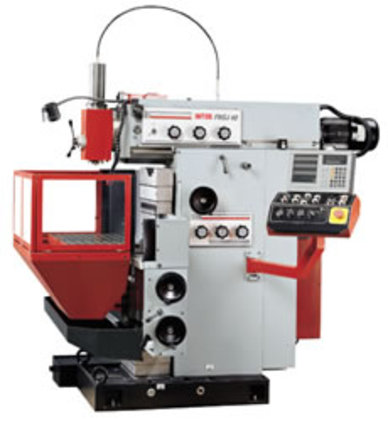

FNGJ 40 freesmachine
Merk : Intos
Type : FNGJ 40
X / Y / Z - 600 / 400 / 400 mm
Productomschrijving
MACHINE APPLICATION:
The universal toolroom milling machine is designed for single-piece and small-lot production of intricate parts especially in toolmaking. Workshops i. e. the production of gauges, tools, jiga, dies, fixtures and other components. A wide assortment of optional extra enables plane, slanting and circular surfaces to be Miller, as well as drilling, slotting, boring and all the operations of direct or indirect indexing. Almost any common material can be economically worked on the machine. In its basic version the milling machine is equipped with length scales and dials. The feeds in all required directions are realized by ground trapezoidal screws. Electroequipment for 3 x 400 V, 50 Hz voltage and frequency. Other wiring execution should be noted by ordering the machine.
To machine assets belong:
- High versatility
- High rigidity
- Lasting precision
- Semi-automatic clamping of tools
- Machine assemble ready for shipment
- Safe and easy control
- Wide range of speeds and feeds
- Easy maintenance
STANDARD EQUIPMENT:
- Fixed angle table (800 x 400 mm)
- Bushing, 40 x 3 including M12 bolt
- Reduction piece, 40 x 3, including M16 bolt
- Set of service tools
- Spotlight
- Suspension of vertical head
- Vertical head with intermediate plate
OPTIONAL EXTRAS:
- Slotting head with intermediate plate
- Overarm of long arbors
- Rotary table
- Dividing attachment
- Punch milling attachment
- Rotary tilting table
- Tilting table
- Machine vice with swivel base - 125
- Boring head Vhu 36
- Guards of angle table working space
- Reducing sleeve 40 x 1, 40 x 2
- Bushings including chuck collets 40 x 16, ø 4, 5, 6, 7, 8, 9, 10 mm, 40 x 28, ø 8, 10, 12, 16, 18, 20 mm
- Short milling arbors - combined ø 16, 22, 27, 32, 40
- Long milling arbors ø 22, 27, 32, 40
- Check arbor
- Reducing arbor 40 x 1, 40 x 2, 40 x 4
- Clamping screw M16
- Clamping screw M12
- Speed increasing device ZP 10/X
OPTIONAL MACHINE VERSIONS:
- Machine with digital position readout
- With feed ball screws
- Machine to comply with other than the ČNS standards
- Machine suited for service in arduous climatic conditions
- Machine painted to client's specification
- Outfit for other than 400 V, 50 Hz voltage
- Paint in other coloured shade
MACHINE SPECIFICATIONS:
| WORKING RANGE | ||
|---|---|---|
| Travels | ||
| Longitudinal - X-axis | mm | 600 |
| Cross - Y-axis | mm | 400 |
| Vertical - Z-axis | mm | 400 |
| Maximum table load | kg | 400 |
| WORKING TABLE | ||
| Clamping surface | mm | 400x800 |
| Working feed - X-axis | mm/min | 16- 800 |
| Working feed - Y-axis | mm/min | 16 - 800 |
| Working feed - Z-axis | mm/min | 8 -400 |
| Rapid traverse - X-axis | mm/min | 2000 |
| Rapid traverse - Y-axis | mm/min | 2000 |
| Rapid traverse - Z-axis | mm/min | 1000 |
| SPINDLE | ||
| Spindle taper | ISO | 40 |
| Speed range | 1/min | 63 - 3150 |
| Number of speed steps | 18 | |
| Main motor output | kW | 4 |
| MACHINE | ||
| Total input | kVA | 8 |
| Dimension | ||
| Length | mm | 1810 |
| Width | mm | 1975 |
| Height | mm | 1910 |
| Weight | kg | 2200 |
