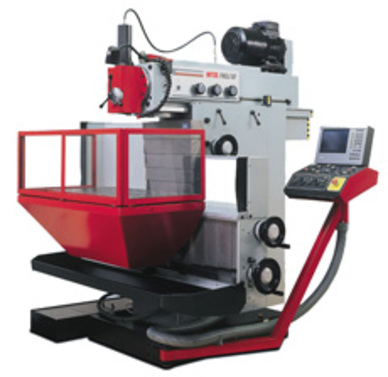

FNGJ 50 freesmachine
Merk : Intos
Type : FNGJ 50
X / Y / Z - 700 / 500 / 500 mm
Productomschrijving
MACHINE APPLICATION:
The universal toolroom milling machine is designed for single-piece and small lot production of intricate parts, especially in tool-making workshops (i.e. the production of gauges, fixtures, jigs, dies and other components). A wide assortment of optional extras enables plane, inclined and circular surfaces to be milled, as well as drilling, slotting, grinding and all the operations of direct or indirect indexing. Almost any common materials can be economically worked on this machine. In basic execution the milling machine is equipped by length scales and dials. The feeds in alt directions are realized by ground trapezidal screws.
To machine assets belong:
- High universality
- High rigidity
- Lasting precision
- Semi-automatic clamping of tools
- Machine assembled ready for shipment
- Safe and easy control
- Wide range of speeds and feeds
- Easy maintenance
STANDARD EQUIPMENT:
- Fixed angle table (900 x 500 mm)
- Bushing, 40 x 3, including M12 bolt
- Reduction piece, 40 x 3, including M16 bolt
- Set of service tools
- Spotlight
- Working space covers
- Suspension of vertical head
- Vertical head with intermediate plate
OPTIONAL EXTRAS:
- Slotting head with intermediate plate
- Overarm of long arbors
- Rotary table
- Tilting table
- Rotary tilting table
- Indexing head
- Machine vice with swivel base - 125
- Boring head Vhu 36
- Speed increasing device ZP 10/X
- Reducing sleeve 40 x 1, 40 x 2
- Bushing including chuck collets 40 x 16 ø 4, 5, 6, 7, 8, 9, 10mm, 40 x 28 ø 8, 10, 12, 16, 18, 20 mm
- Short milling arbors ø 16, 22, 27, 32, 40
- Long milling arbors ø 22, 27, 32, 40
- Check arbor
- Reducing arbor 40 x 1, 40 x 2, 40 x 4
- Clamping screw M16
- Clamping screw M12
- Punch milling attachment
OPTIONAL MACHINE VERSIONS:
- Machine with digital position readout
- Machine to comply with other than the ČSN
- Machine suited for service in arduous climatic conditions
- Outfit for other than 400 V, 50 Hz voltage
- Paint in other coloured shade
- Machine with feed ball screws
| WORKING RANGE | ||
|---|---|---|
| Travels | ||
| Longitudinal - X-axis | mm | 700 |
| Cross - Y-axis | mm | 500 |
| Vertical - Z-axis | mm | 500 |
| Maximum table load | kg | 400 |
| WORKING TABLE | ||
| Clamping surface | mm | 500x900 |
| Working feed - X-axis | mm/min | 16- 800 |
| Working feed - Y-axis | mm/min | 16 - 800 |
| Working feed - Z-axis | mm/min | 8 - 400 |
| Rapid traverse - X-axis | mm/min | 3000 |
| Rapid traverse - Y-axis | mm/min | 3000 |
| Rapid traverse - Z-axis | mm/min | 1500 |
| SPINDLE | ||
| Spindle taper | ISO | 40 |
| Speed range | 1/min | 63 - 3150 |
| Number of speed steps | 18 | |
| Main motor output | kW | 5.5 |
| MACHINE | ||
| Total input | kVA | 12 |
| Dimension | ||
| Length | mm | 2115 |
| Width | mm | 2220 |
| Height | mm | 2120 |
| Weight | kg | 2550 |
