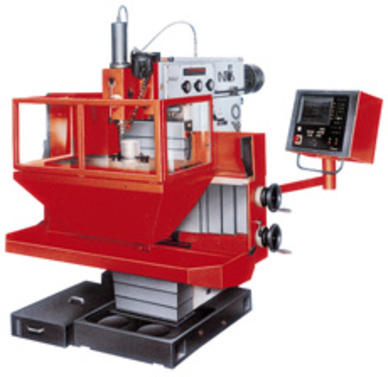

FNGP 40 CNC freesmachine
Merk : Intos
Type : FNGP 40
X / Y / Z - 600 / 400 / 400
Productomschrijving
MACHINE APPLICATION:
Numerically controlled toolmaker's milling machine is a universal production means suitable for a chip machining of small shape intricated parts in piece and batch production. It allows high accuracy of machining. New control system TNC 124 facilitates steering of 3 axes in rectangular coordinates. Apart from this, the system has 1 unsteering axis with measuring too. Programming is made in dialogue Heidenhain. The memory makes placing of 20 programmes with 2000 NC lines possible. TNC 124 regulates drilling of opening in circle, in line, with graphical support and deep drilling. System can correct radii and lengths for 99 tools.
STANDARD EQUIPMENT:
- Fixed angle table (800 x 400 mm)
- Bushing, 40 x 3, including M12 bolt
- Reduction piece 40 x 3, including M16 bolt
- Set of service tools
- Spotlight
- Suspension of vertical head
- Vertical head with intermediate plate
OPTIONAL EXTRAS:
- Slotting head with intermediate plate
- Overarm of long arbors
- Rotary table
- Dividing attachment
- Punch milling attachment
- Rotary tilting table
- Machine vice with swivel base - 125
- Speed increasing device ZP 10/X
- Boring head Vhu 36
- Guards of angle table working space
- Reducing sleeve 40 x 1, 40 x 2
- Bushing including chuck collets 40 x 16 ø 4, 5, 6, 7, 8, 9, 10mm, 40 x 28 ø 8, 10, 12, 16, 18, 20 mm
- Short milling arbors ø 16, 22, 27, 32, 40
- Long milling arbors ø 22, 27, 32, 40
- Check arbor
- Reducing arbor 40 x 1, 40 x 2, 40 x 4
- Clamping screw M16
- Clamping screw M12
- Handwheel HR 410
OPTIONAL MACHINE VERSIONS:
- Outfit for other than 400 V, 50 Hz voltage
- Paint in other coloured shade
- Machine to comply with other than the ČSN standards
MACHINE SPECIFICATIONS:
| WORKING RANGE | ||
|---|---|---|
| Travels | ||
| Longitudinal - X-axis | mm | 600 |
| Cross - Y-axis | mm | 400 |
| Vertical - Z-axis | mm | 400 |
| Maximum table load | kg | 300 |
| WORKING TABLE | ||
| Clamping surface | mm | 400x800 |
| Working feed - X-axis | mm/min | 1 - 3000 |
| Working feed - Y-axis | mm/min | 1 - 3000 |
| Working feed - Z-axis | mm/min | 0.5 -1500 |
| Rapid traverse - X-axis | mm/min | 3000 |
| Rapid traverse - Y-axis | mm/min | 3000 |
| Rapid traverse - Z-axis | mm/min | 1500 |
| SPINDLE | ||
| Spindle taper | ISO | 40 |
| Speed range | 1/min | 63 - 3150 |
| Number of speed steps | 18 | |
| Main motor output | kW | 4 |
| MACHINE | ||
| Total input | kVA | 8 |
| Dimension | ||
| Length | mm | 1810 |
| Width | mm | 1975 |
| Height | mm | 1910 |
| Weight | kg | 2200 |
| Control system | Heidenhain | TNC 124 |
