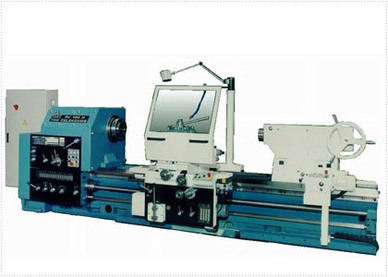

SU 125 H draaimachine

Merk : TOS Celakovice
Type : SU 125 H

Ø 1250 mm, l = 2000 - 20000 mm

Productomschrijving

Machine use

Universal centre lathe SU 125 H enables feed and traverse turning of shaft-shape workpieces up to weight 8 000 kg and flange-shape workpieces up to Ø 1 250 mm, cutting of all types of threads within large range and number of pitches. Basic parameters of machines, general concept and design of machines are basis for powerful machining and usage of installed power.

Technical parameters   Operating range   Swing Ø over bed 1 250 mm Swing Ø over carriage saddle 940 mm Swing Ø over extended saddle with T-grooves 840 mm Centre-to-centre distance 2 000, 3 000, 4 000, 5 000,
6 000, 8 000 mm, max 20 000 mm Max. weight of workpiece
(without rest / with rest) 6 000 / 8 000 kg Spindle size 11, DIN 55027, bayonet Bore 122 mm Speed range 2,24 – 450 min-1 Main motor power 22 Kw Tailstock   Tailstock sleeve Ø 150 mm Inner cone 100 (1:20) mm Reduction insert 100 (MK6) Total input power 31,0 (40) kVA Weight 7 200 – 12 750 kg
