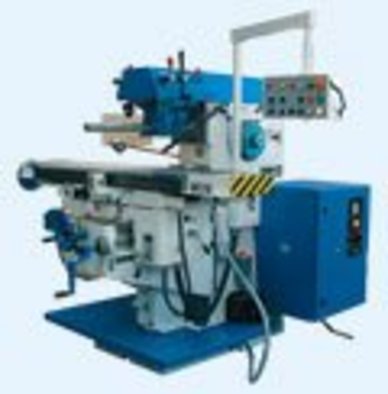

FGU 32 freesmachine
Merk : TOS Olomouc
Type : FGU 32
X / Y / Z - 1000 / 275 / 420 mm
Productomschrijving
| Knee-type milling machine FGU 32 | ||
| TABLE | ||
| table size | mm | 360 x 1400 |
| clamping slots | ||
| number | 4 | |
| width & spacing | mm | 18 x 63 |
| swivels | ± 45 ° | |
| maximal table load | kg | 250 |
| travel | ||
| longitudinal (X) | mm | 1000 |
| cross (Y) | mm | 275 |
| vertical (Z) | mm | 420 |
| feeds | ||
| number of feed rates | stepless | |
| range X,Y | mm/min | 20 - 900 |
| range Z | mm/min | 5,7 - 250 |
| rapid traverse | ||
| X,Y | mm/min | 1635 |
| Z | mm/min | 460 |
| SPINDLE | ISO50 | |
| distance of spindle axis from frame quide ways | mm | 370 |
| Revolutions | ||
| number of feed rates | 12 | |
| basic range | r.p.m. | 31,5 - 1400 |
| speed range | r.p.m. | 45 - 2000 |
| motor power | kW | 5,5 |
| MACHINE | ||
| max. power input | kVA | 13 |
| weight | kg | 2900 |
| floor space | mm | 2995 x 2000 |
| height | mm | 1980 |
