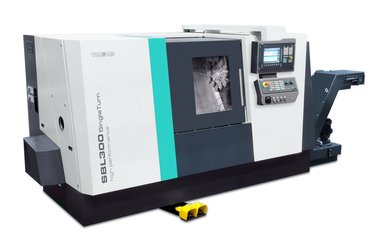

SBL 300 CNC draaimachine
Merk : TOS Trens
Type : SBL 300 CNC
Ø 530 mm, l = 500 mm
Productomschrijving
The unique features predestine this machining centre for engineering production in medium and large series. It has been applicable for precision machining of plastic and metal work pieces with sophisticated geometric shapes, where the version equipped with the movable counter spindle makes possible complex machining of work pieces to be finished using a single machine tool. The machine tool will be beneficial to productivity growth along with the considerable decrease in capital costs when used either for bearing rings production, batch production of flanges, clutch plates or half-axles for automotive industries. The dimensions and technical standard also make this SBL 300 CNC machining centre ideal for application as a teaching aid for either secondary schools or universities.
Working range:
| Max. swing over bed | 530 mm | 20,86 inch |
| Max. turned diameter | 260 mm | 10,23 inch |
| Turning distance between chuck and tailstock |
500 mm | 20 inch |
| Turning distance between chucks | 485 mm | 19,09 inch |
| Max. workpiece dimension clamped between centres |
200 kg | 440,92 lbs |
| Max. workpiece mass clamped in chuck | 80 kg | 176,36 lbs |
Main spindle:
| Spindle bore Ø | 55 | 65* | 92* | mm |
| Spindle bore Ø | 2,16 | 2,55 | 3,62 | inch |
| Spindle nose (DIN 55026) | A2-5 | A2-6* | A2-8 | |
| Max. spindle revolution | 4000/5000* | 4000/5000 | 3500 | min -1(rpm) |
Main spindle drives:
| Main drive motor output S1 | 7 | 9 | 13 | 15 | kW |
| Main drive motor output S1 | 9,38 | 12,06 | 17,43 | 20,11 | HP |
| Main drive motor output S6 | 10 | 13 | 16,5 | 23 | kW |
| Main drive motor output S6 | 13,41 | 17,43 | 22,12 | 30,84 | HP |
