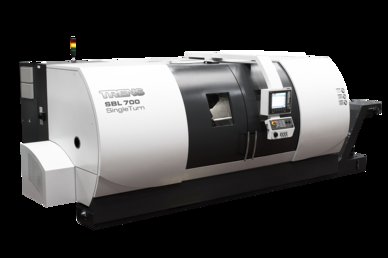

SBL 700 CNC draaimachine
Merk : TOS Trens
Type : SBL 700 CNC
Ø 750 mm, l = 2000 mm
Productomschrijving
The characteristics predestine the lathe for production in medium and large series, in the field of sophisticated machining of both metal and plastic work pieces with complicated geometrical shapes. The machine tool is beneficial to productivity growth along with the considerable decrease in capital costs when used either for bearing rings production, batch production of flanges, clutch plates or half-axles for automotive industries.
Operating range
| Swing over guides guards | 750 mm | 29,52 inch |
| Swing in the jaw chuck and tailstock | 500 mm | 19,68 inch |
| Machining length in the jaw chuck and tailstock |
2000 mm | 80 inch |
| Max. chuck diameter | 400 mm | 15,74 inch |
| Max. weight of the work piece held in centres | 2500 kg | 5511,55 lbs |
| Max. weight of the work piece clamped in the chuck | 250 kg | 551,15 lbs |
Spindle :
| Spindle nose – size | DIN 55026 A2-11 | |
| Spindle bore | 127 mm | 5 inch |
| S1 Main drive motor output | 37 kW | 49,61 HP | |
| S6-40 main drive motor output (when overloaded) |
45/56 kW | 60,34/75,09 HP | |
| Spindle speed range | 1st speed step | 0-700 | rev.min -1 (rev) |
| 2nd speed step | 0-2500 | rev.min -1 (rev) |
Carriages with drive
| Cross slide rest feed range | 1÷10000 mm.min -1 | 1÷10000 ipm |
| Cross slide rapid traverse | 16 m.min -1 | 629,92 ipm |
| Longitudinal slide feed range | 1÷10000 mm.min -1 | 1÷10000 ipm |
| Longitudinal slide rapid traverse | 20 m.min -1 | 787,4 ipm |
| Travel range of X - axe | 420 mm | 16,53 inch |
| Travel range of Z - axe | 2170 mm | 85,43 inch |
Turret :
| 12 position turret SAUTER/DUPLOMATIC with or without the option to drive rotary tools tool head bore for the 50 mm/ 1,96 inch holder |
Tailstock :
| Tailstock sleeve internal taper | MORSE 6 | |
| Tailstock sleeve stroke | 150 mm | 5,9 inch |
Machine tool size:
| Height | 2487 mm | 97,91 inch |
| Width | 2237/2256 mm | 80,07/88,81 inch |
| Length | 5465 mm | 215,15 inch |
| The length including the chip conveyor (on the right/left) |
6799/6361 mm | 267,67/250,43 inch |
Weight :
| including standard accessories | 11 000 kg | 24250,85 lbs |
