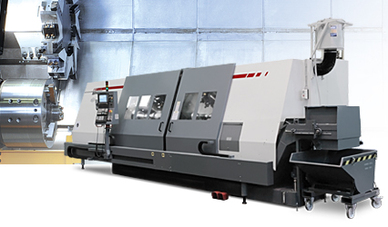

SPH 50 CNC, SPH 50D CNC, SPH 50DS CNC draaimachine
Merk : MAS Kovosvit
Type : SPH 50 CNC, SPH 50D CNC, SPH 50DS CNC
max. Ø 530 mm, max. l. 3000 mm
Productomschrijving
Machine highlights
- The CNC lathes Models SPH 50 CNC (SPH 50D CNC) meet customer’s needs for productive and effective machining of long and heavy shafts. On customer’s demand, the lathes are available in more versions with different turning length and combination of used carriages and rests. This variable production range enables customer to choose the optimum machine configuration adapted to economical solution of its specific technological requirements.
- The CNC lathe Model SPH 50 CNC represents the heavy variant of these lathes, advantageous for roughing turning operations.
- The machine Model SPH 50DCNC extends the production range of machines in this category as an universal lathe for precise turning jobs and power machining it can be profitably utilised for finishing operations.
| Working range | SPH50 / 50D | SPH 50DS | |
| Max. swing dia. over bed | mm | 760 |
760
|
| Max. turning dia. by RH / LH carriages | mm | 530/530 - 530/400 |
530 / 400
|
| Max. turning length | mm | 3000 / 2800 |
2700
|
| Min. turning length | mm | 1000 |
1 000
|
| Max. workpiece weight | kg | 1000 |
1 000
|
| Spindle | |||
| Spindle nose DIN 55026 | - | Size 15 / vel. 11 |
Size A11
|
| Spindle bore dia. | mm | 125 / 135 |
ø 135
|
| Main drive | |||
| Motor output | kW | 100 / 60 |
28 / 42
|
| Spindle speed range | RPM | 20 - 2100 / 20 - 2800 |
20 - 2 800
|
|
Second Spindle
|
|||
|
Spindle nose (ISO 702-1)
|
----- |
Size A8
|
|
|
Spindle bore dia.
|
mm | ----- |
ø 65
|
|
Motor output (S1/S6-40%)
|
kW | ----- |
22 / 28
|
|
Spindle speed range
|
RPM | ----- |
20 - 4000
|
| NC I - Rh upper carriage | |||
| Axis X - max. travel | mm | 225 / 280 |
280
|
| Axis Z - max. travel | mm | 2650 / 2620 |
2600
|
| Rapid traverse X / Z | m/min | 12 -15 |
12 - 15
|
| NC II - Rh upper carrage | |||
| Axis U - max. travel | mm | 225 / 180 |
200
|
| Axis W - max. travel | mm | 2005 / 2030 |
2 030
|
| Rapid traverse U / W | m/min | 12 -15 |
12 - 15
|
| Machine dimensions | |||
| Length x width x height | mm | 7000x3271x2286 / 7140x3271x2230 |
8124 x 3435 x 2230
|
| Weight | kg | 27000 / 26000 |
cca 26 000
|
